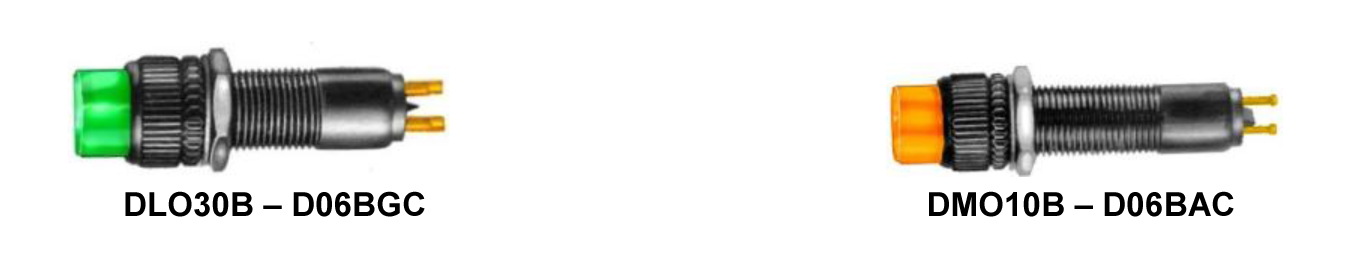

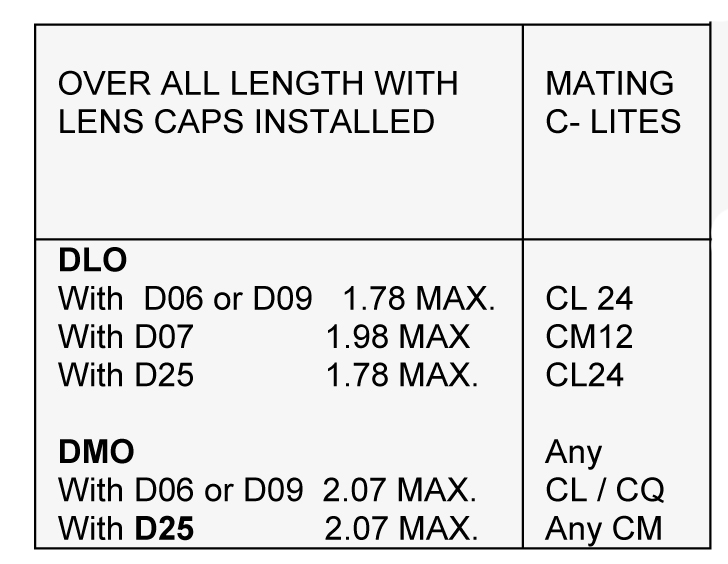

The DL and DM series lamp holders are designed primarily to accommodate the longer high voltage. The DL and DM are Identical to the DHO types except for the longer lengths and use the same lens cap.

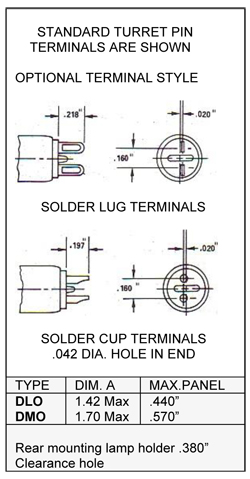

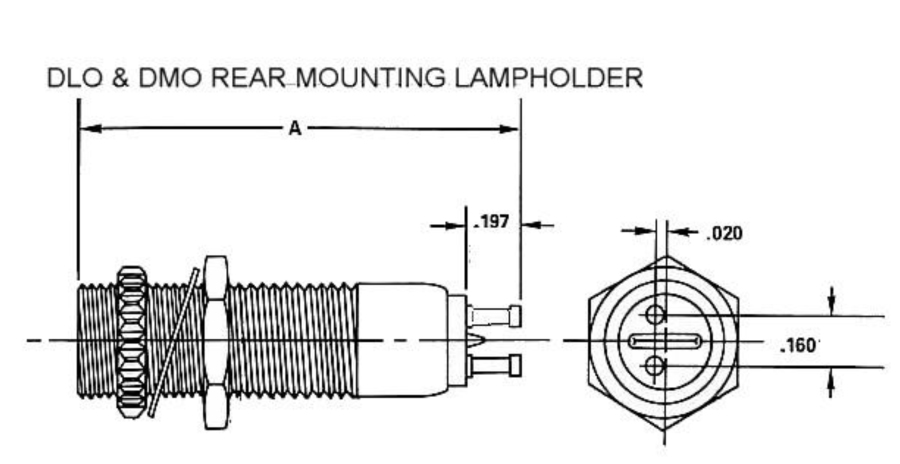

TYPE DLO-REAR MOUNTING, 3/8” HOLE
TYPE DMO-REAR MOUNTING, 3/8” HOLE

-------------------------------------------------------------------------------------------

ORDERING INFORMATION

DL and DM SERIES lampholders may be ordered separately or as complete
Assembly.  Formulate the part number using the table at the right.

EXAMPLE PART NUMBERS
DLO – 10B –D06 DO6BGT   Assembly
DLO – 10B       Lampholder Only

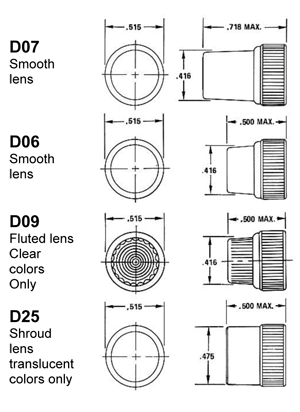

D06BGT      Lens Cap Only

PART MARKING:  ELDEMA and the lampholder number    (ELDEMA DLO10B) Eldema lampholder DLO11B meets MIL – L – 3661, Type LH90/3
